Operand Register

This is the 4-bit register holds the operand of opcode of the instruction which OSU8 is currently executing.

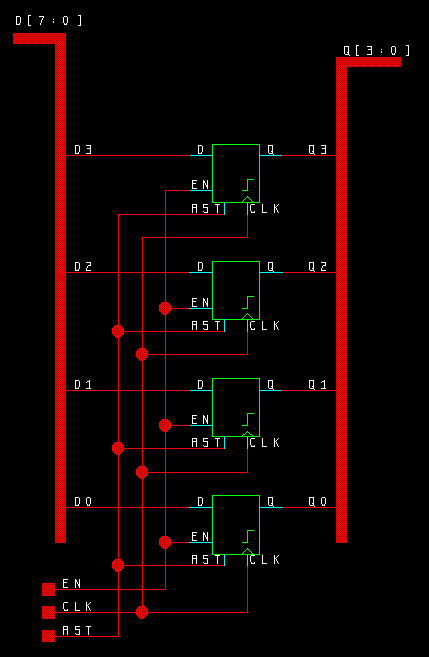

Schematic Drawing

OSU8: Simple 8-Bit Microprocessor Design; Paul Stoffregen
http://www.pjrc.com/tech/osu8/sch/reg8a_ir.html
Last updated: February 24, 2005
Status: These pages are a work-in-progress
